Short Description:

MT Series Interactive Flat Panel MT series covers the widest size from 55inch to 110inch, the best selling model in ourproduction line. As the perfect combination of infrared touch frame and LCD glas


  • Product Details
  • Specifications
  • Related Products
  • Download

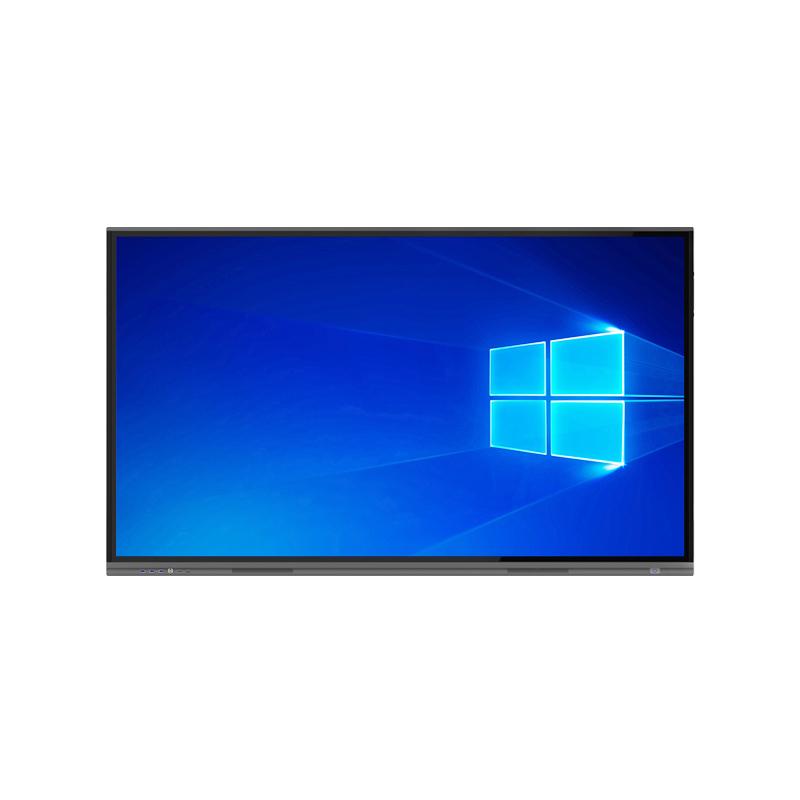

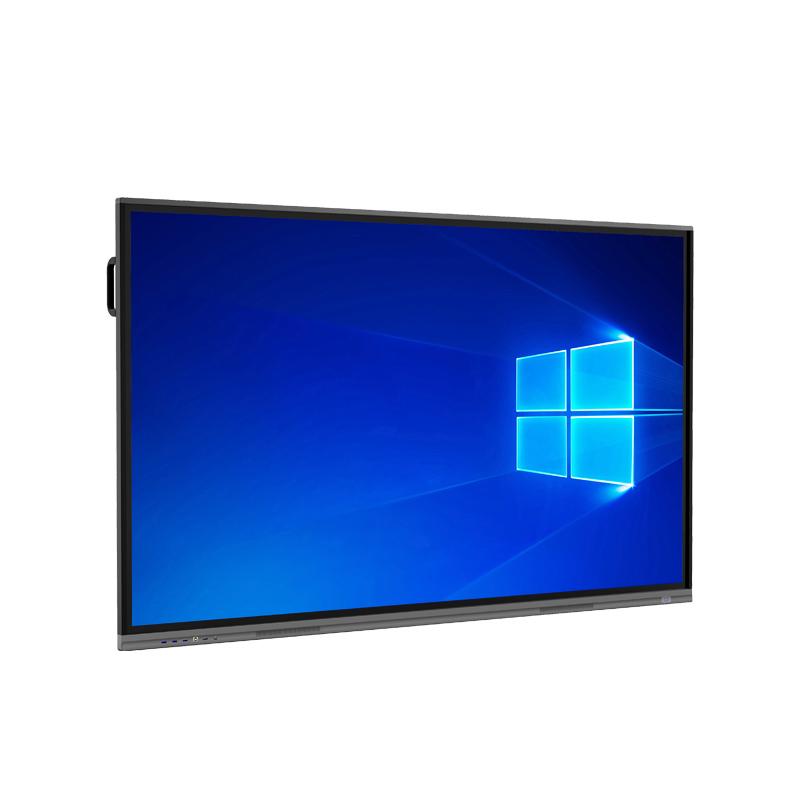

MT Series Interactive Flat Panel

MT series covers the widest size from 55inch to 110inch, the best selling model in our production line. As the perfect combination of infrared touch frame and LCD glass, it provides the ±1mm precision touch experience and 4K high definition display. For OEM service, it has a lot features for your choices for example the top AI camera & microphone, pen up recognition, NFC module, anti-blue light, magnet pens, LOGO service, full-fitting or frame fitting process, and different motherboard configuration etc.

Features

-Screen size optional: 55inch, 65inch, 75inch, 85inch, 86inch, 98inch, 110inch

-Android 14.0 system

-Qtca core 1.5G Hz, 8G+128G

-Standard 350~400nits

-High accuracy of ±1mm infrared touch frame

-Front interface: 3*USB 3.0, 1*Type C, 1* Touch USB, 1* HDMI in

-Anti-glare 4mm tempered glass with Mohs 7-level hardness

-Compatible with both china and Europe standard OPS slot

-Suitable for classroom and meeting room like the online education, video conference etc.

Overview

√ Aluminium shell frame, metal cover with good cooling system
√ 2*15W high quality speaker
√ Zero gap bonding technology, low parallax writing and more clear display
√ Support WIFI, bluetooth, LAN
√ One button for screen recording
√ 5 fingers long time press for screen on/off
√ Smart eye-protection
√ Built-in light sensor, floating menu

Interactive Flat Panel is a good tool for interaction between teachers and students. As a new replace of the traditional blackboard, it enables people to touch and write whatever they want. Equipped with the good software, the panel can recognize the word, special geometric shape, mathematical formulas. All writing can be recorded for playback.

Additional it is a useful tool for conference. The built-in camera & microphone makes the ability for remote collaboration, everyone from anywhere can share their own voice, photos, videos, comments on only one panel.

What are the advantages of Interactive Flat Panel ? --Digital storage and content playback: unlike the traditional board,  all writing on the boards can be saved as the electronic file like PDF or images, easy for sharing, reviewing and sorting.

--Support remote collaboration and network sharing: users can share the panel remotely for collaboration, suitable for online-class, remote conference etc.

--Environmental and dustless: chalk is unnecessary and it reduces the dust pollution, more healthy and save more cost

--Full functions and applications: supports notes, draws, zoom in or out, multimedia, spot, recordings etc.

--Support multimedia teaching like the audios, videos, animations, website etc, that combined with dynamic tools like geometric drawings & simulation experiment to strengthen the final effects.

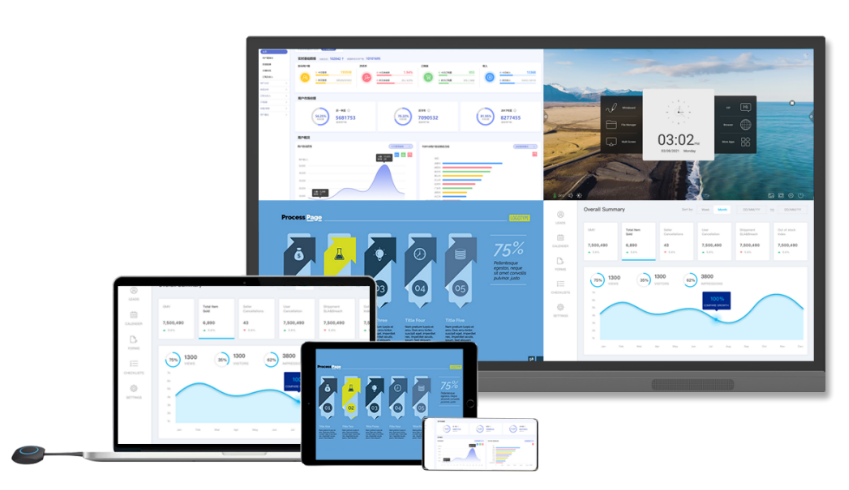

Fast Screen Casting on different Equipment

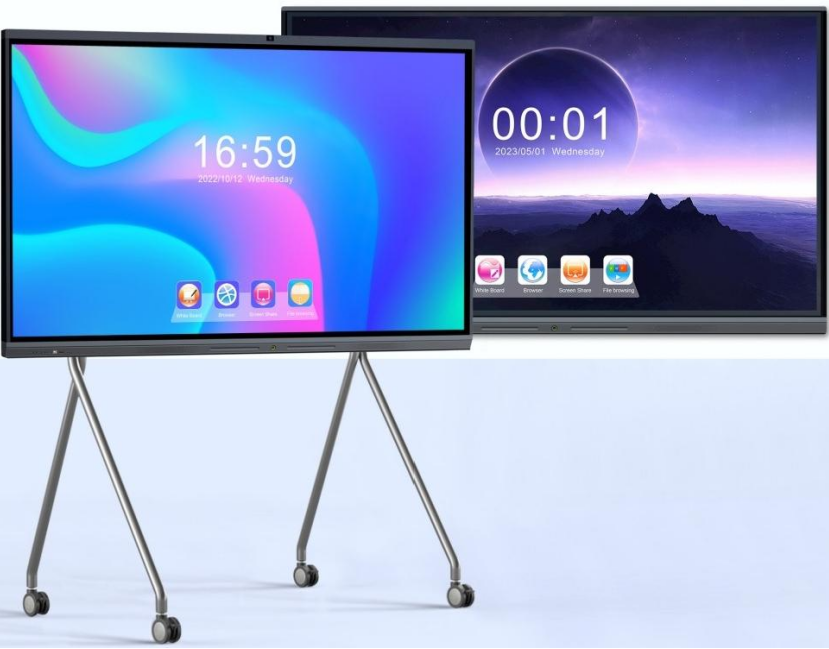

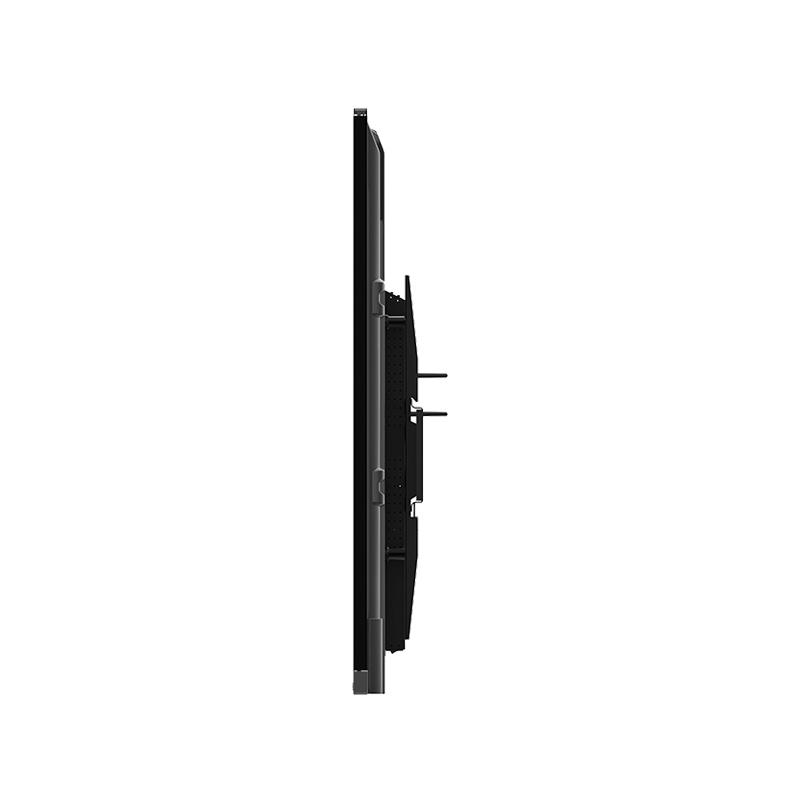

You can mount it on the wall or install on mobile stand

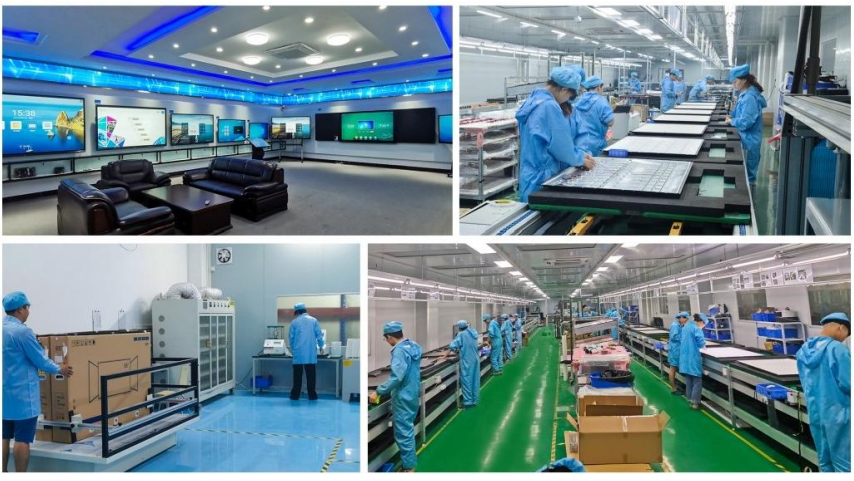

About Our Factory

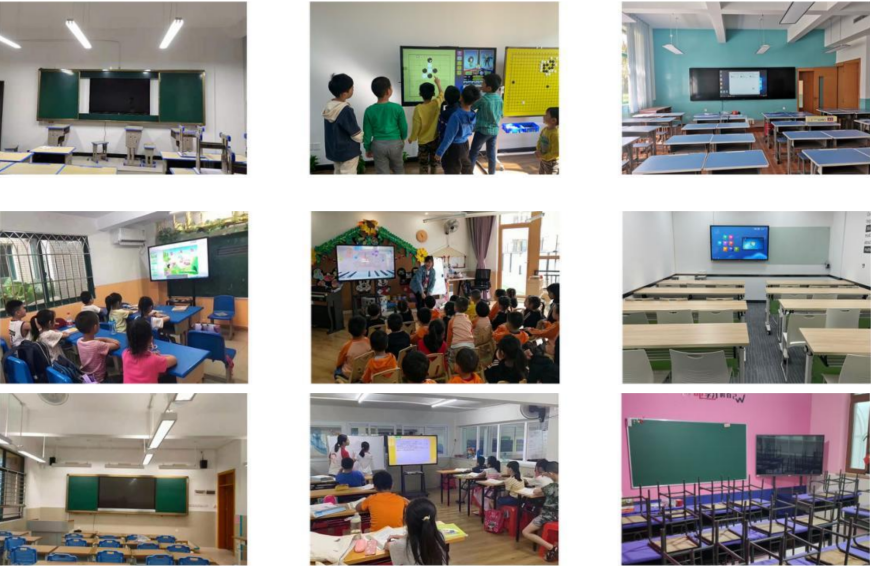

The Projects We have Done

LCD PanelScreen Size55/65/75/85/86/98/110inch
BacklightLED backlight
Panel BrandBOE/LG/AUO
Resolution3840*2160
Brightness350-400nits
Viewing Angle178°H/178°V
Response Time6ms
MainboardOSAndroid 14.0
CPUA55 *8, 1.2-1.5G Hz, Qcta Core
Memory4/8G
Storage32/64/128G
InterfaceFront InterfaceUSB 3.0*3, HDMI*1, Touch*1, Type-C*1
Back InterfaceInput: Lan*1, HDMI*2, DP*1, USB2.0*1, USB3.0*1, VGA*1, MIC*1, PC Audio*1, TF*1Output: Line*1, LAN out*1, HDMI out*1,coxial*1, Touch*1
Other FunctionCamera13M/48M/64M Pixels
Microphone8 array
Speaker2*15W
Touch ScreenTouch Type20 points infrared touch frame
Accuracy±1mm
OPS (Optional )ConfigurationIntel Core I7/I5/I3, 4G/8G/16G +128G/256G/512G SSD
Network2.4G/5G WIFI, 1000M LAN
InterfaceVGA*1, HDMI out*1, LAN*1, USB*4, Audio out*1, Min IN*1,COM*1
Environment& PowerTemperatureWorking tem: 0-40℃; storage tem: -10~60℃
HumidityWorking hum:20-80%; storage hum: 10~60%
Power SupplyAC 100-240V(50/60HZ)
StructureColorGrey/Black/White
PackageCorrugated carton+stretch film+optional wooden case

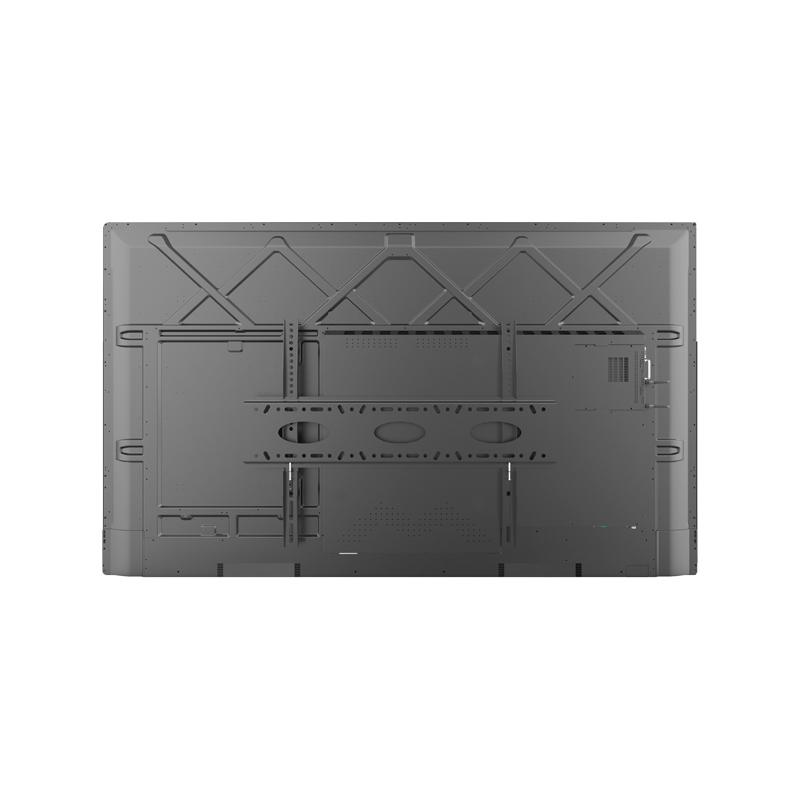

VESA(mm)500*400(65”),600*400(75”), 800*400(86”), 1000*400(98”)
AccessoryStandardMagnetic pen*1, remote control*1, manual *1, certificates*1, power cable *1, wall mount bracket*1
OptionalScreen share, smart pen
