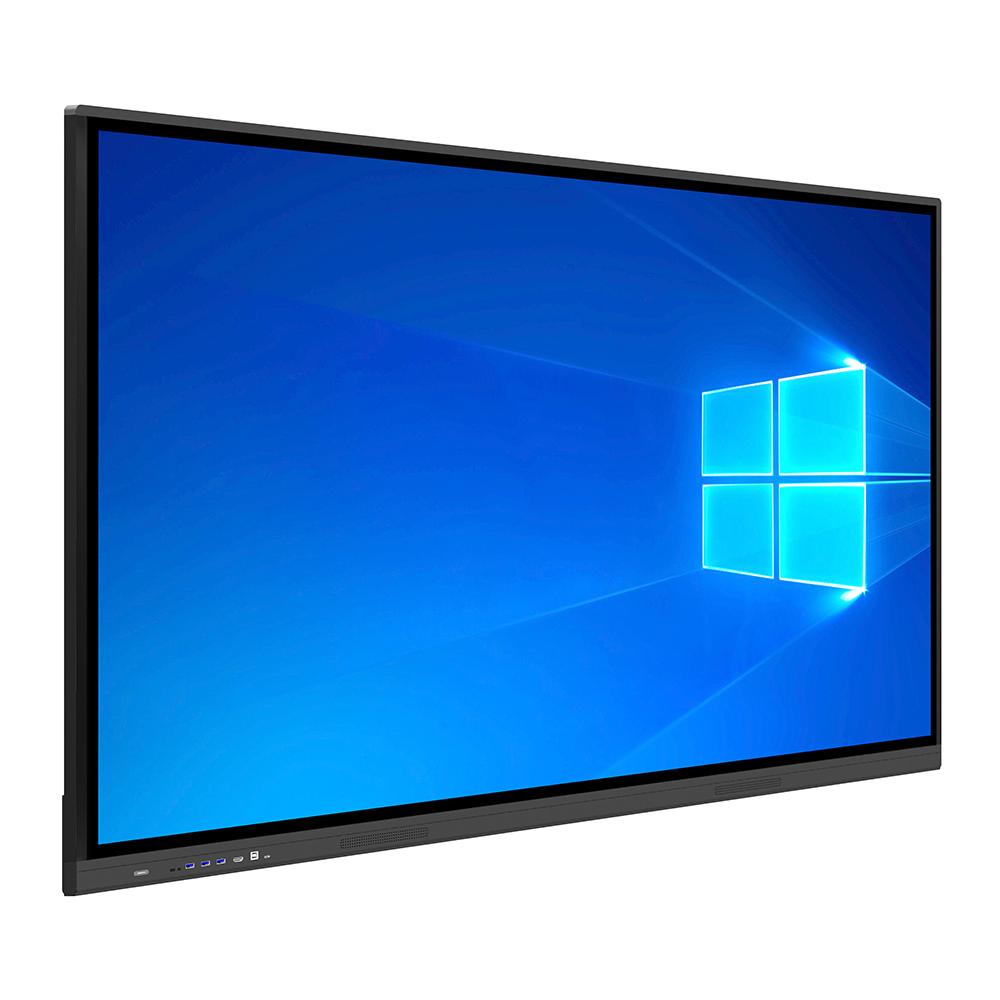

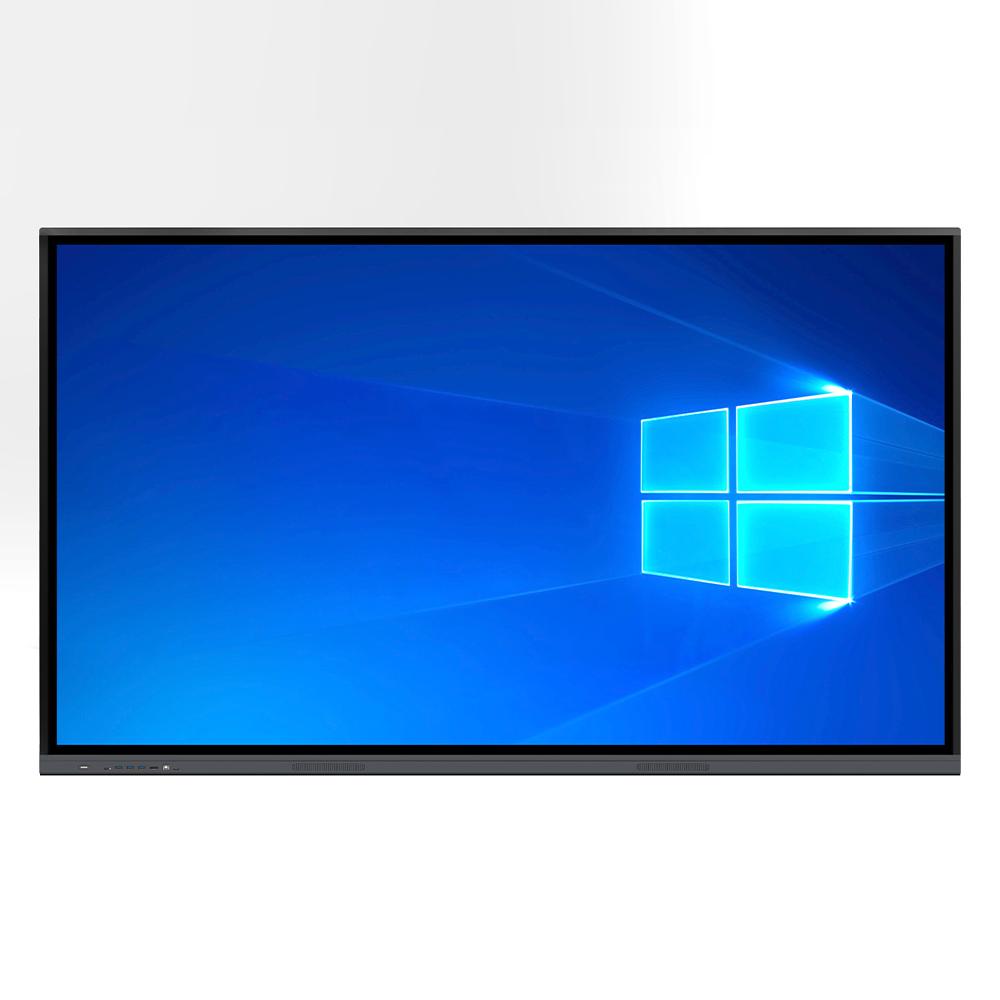

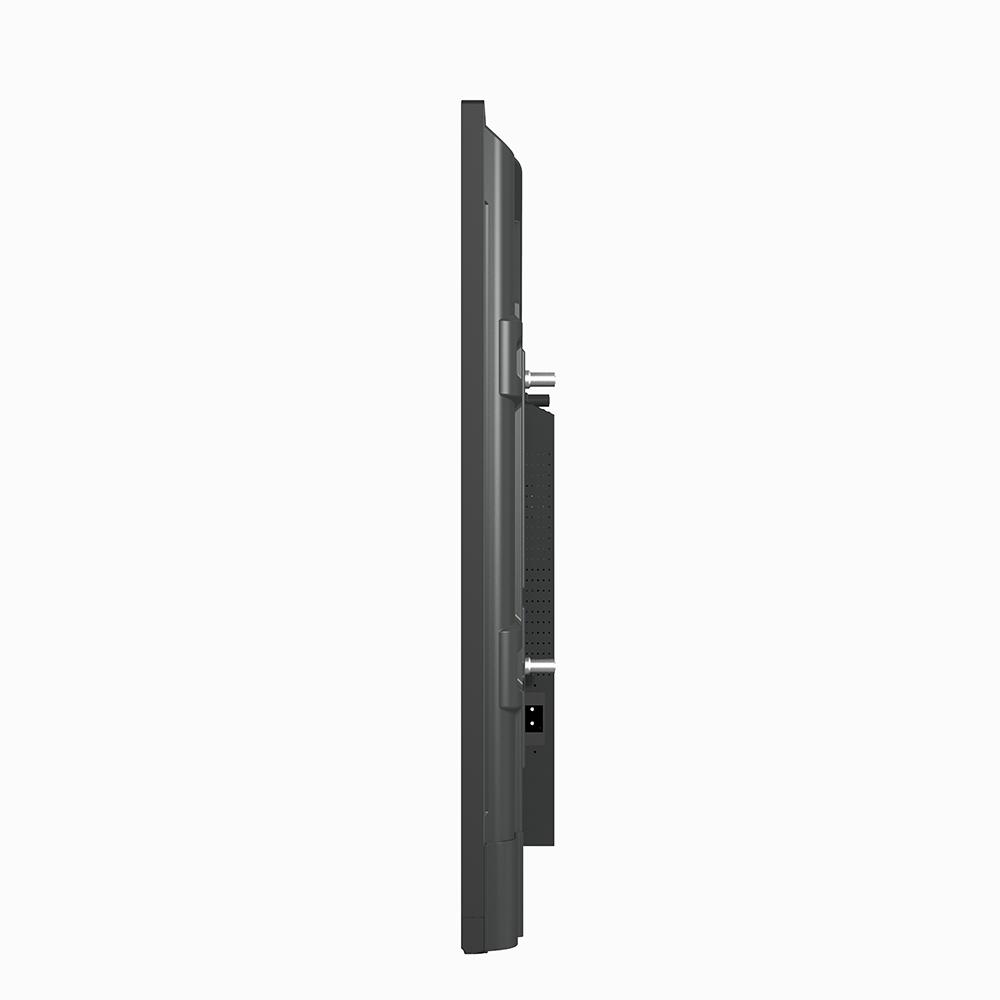

ET Series Interactive Flat Panel
ET is our economic series of interactive flat panel with OD35 backlight structure and frame bonding technology, that keeps the high consistency of LCD panel. This is a very popular model used for education as the electronic LCD whiteboard, it provides the good using experience on classroom interaction, record & broadcasting and online teaching. As the key element of digital multimedia classroom, the whole panel can connects to the whole controlling back platform and be managed centrally.
Features
-Screen size optional: 65inch, 75inch, 85inch, 86inch, 98inch
-Android 14.0 system
-Qtca core 1.5G Hz, 8G+128G
-Standard 300-350nits
-High accuracy of ±1mm infrared touch frame

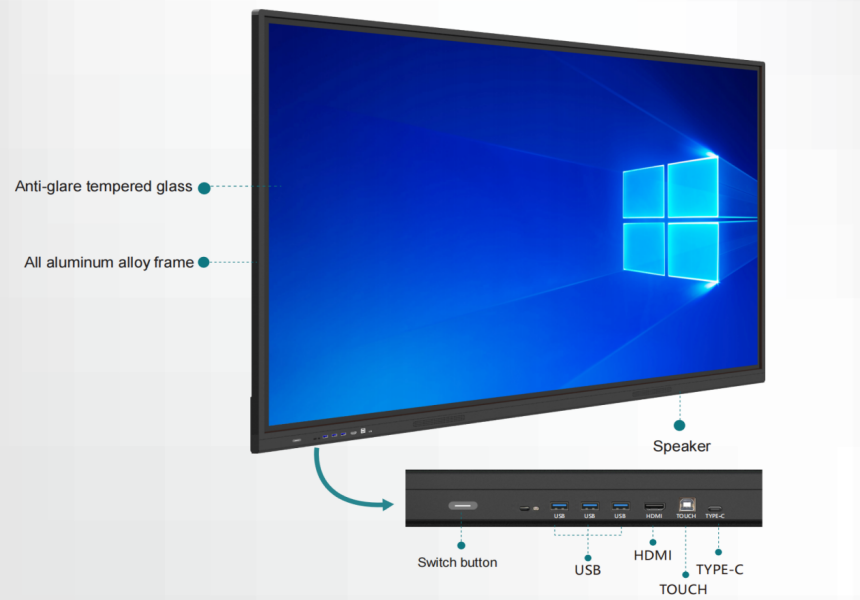

-Front interface: 3*USB 2.0, 1*Type C, 1* Touch USB, 1* HDMI in
-Anti-glare 3.2mm tempered glass with Mohs 7-level hardness
-Compatible with both china and Europe standard OPS slot
-Suitable for classroom and meeting room like the online education, video conference etc.
Overview
| √ Aluminium alloy frame, surface sandblasting and anodic oxidation treatment √ 2*15W high quality speaker √ Support RS232 central control√ Support WIFI, bluetooth, LAN √ One button for screen recording √ Support screen lock, USB lock, touch lock and other security lock functions √ Built-in light sensor, floating menu |
What is Interactive Flat Panel ?
Interactive flat panel is a high-tech electronic equipment including the high-end hardware and software. It integrates the computer and projector in one body, and realize the paperless office and education. Like the traditional blackboard, we can write on the panel just like using a chalk on board, it has been more and more popular in our lives.
What are the advantages of Interactive Flat Panel ? --Digital storage and content playback: unlike the traditional board, all writing on the boards can be saved as the electronic file like PDF or images, easy for sharing, reviewing and sorting.
--Support remote collaboration and network sharing: users can share the panel remotely for collaboration, suitable for online-class, remote conference etc.
--Environmental and dustless: chalk is unnecessary and it reduces the dust pollution, more healthy and save more cost
--Full functions and applications: supports notes, draws, zoom in or out, multimedia, spot, recordings etc.
--Support multimedia teaching like the audios, videos, animations, website etc, that combined with dynamic tools like geometric drawings & simulation experiment to strengthen the final effects.

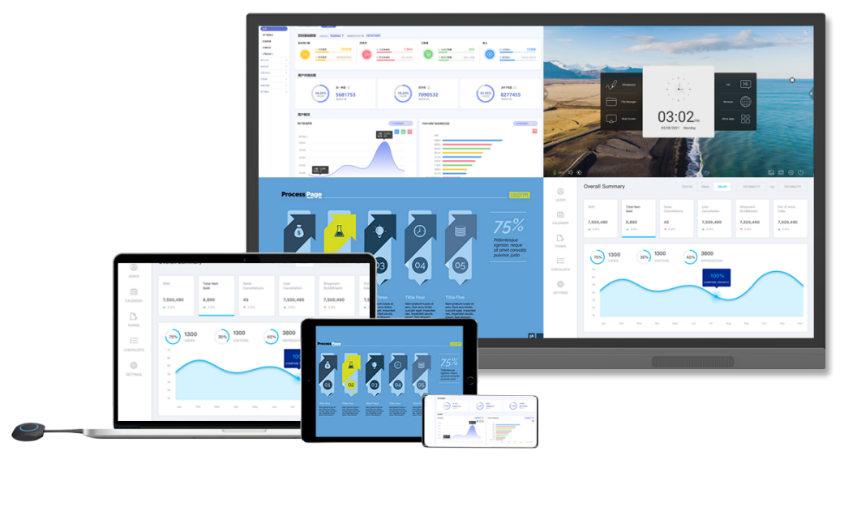

Fast Screen Casting on different Equipment

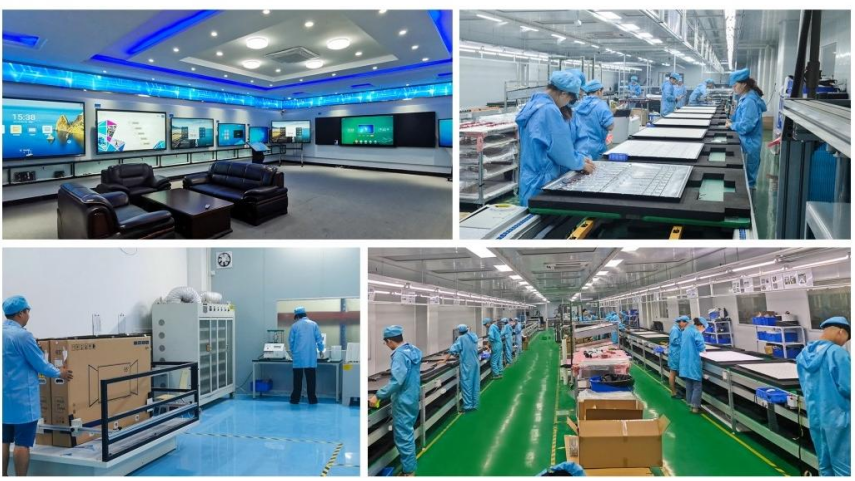

About Our Factory

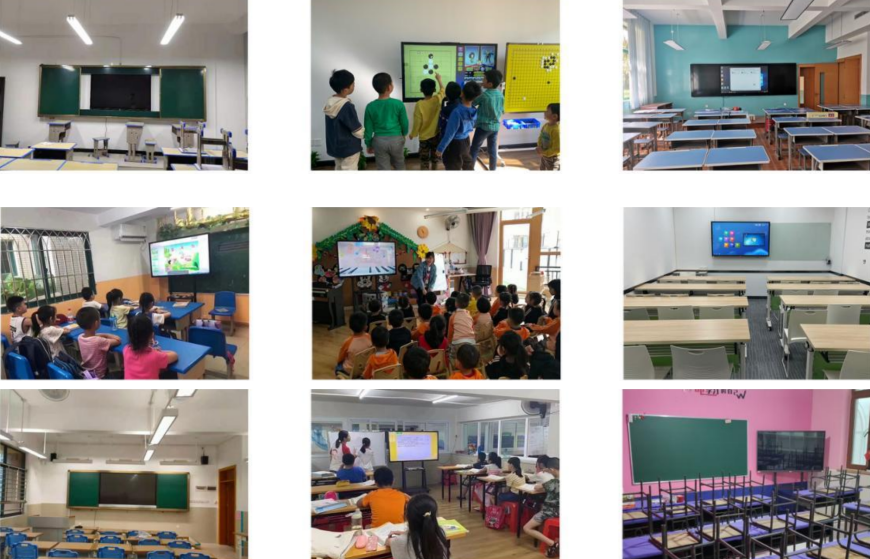

The Projects We have Done
| LCD Panel | Screen Size | 65/75/85/86/98inch |
| Backlight | LED backlight | |
| Panel Brand | BOE/LG/AUO | |
| Resolution | 3840*2160 | |
| Brightness | 300-350nits | |
| Viewing Angle | 178°H/178°V | |
| Response Time | 6ms | |
| Mainboard | OS | Android 14.0 |
| CPU | A55 *8, 1.2-1.5G Hz, Qcta Core | |
| Memory | 4/8G | |
| Storage | 32/64/128G | |
| Interface | Front Interface | USB 3.0*3, HDMI*1, Touch*1, Type-C*1 |
| Back Interface | Input: Lan*1, HDMI*2, DP*1, USB2.0*1, USB3.0*1, VGA*1, MIC*1, PC Audio*1, TF*1Output: Line*1, LAN out*1, HDMI out*1，coxial*1, Touch*1 | |
| Other Function | Camera | 13M/48M/64M Pixels |
| Microphone | 8 array | |
| Speaker | 2*15W | |
| Touch Screen | Touch Type | 20 points infrared touch frame |
| Accuracy | ±1mm | |
| OPS (Optional ) | Configuration | Intel Core I7/I5/I3, 4G/8G/16G +128G/256G/512G SSD |
| Network | 2.4G/5G WIFI, 1000M LAN | |
| Interface | VGA*1, HDMI out*1, LAN*1, USB*4, Audio out*1, Min IN*1,COM*1 | |
| Environment& Power | Temperature | Working tem: 0-40℃; storage tem: -10~60℃ |
| Humidity | Working hum:20-80%; storage hum: 10~60% | |
| Power Supply | AC 100-240V(50/60HZ) | |
| Structure | Color | Grey/Black/White |
| Package | Corrugated carton+stretch film+optional wooden case | |
| VESA(mm) | 500*400（65”），600*400（75”）, 800*400(86”), 1000*400(98”) | |
| Accessory | Standard | Magnetic pen*1, remote control*1, manual *1, certificates*1, power cable *1, wall mount bracket*1 |
| Optional | Screen share, smart pen |
