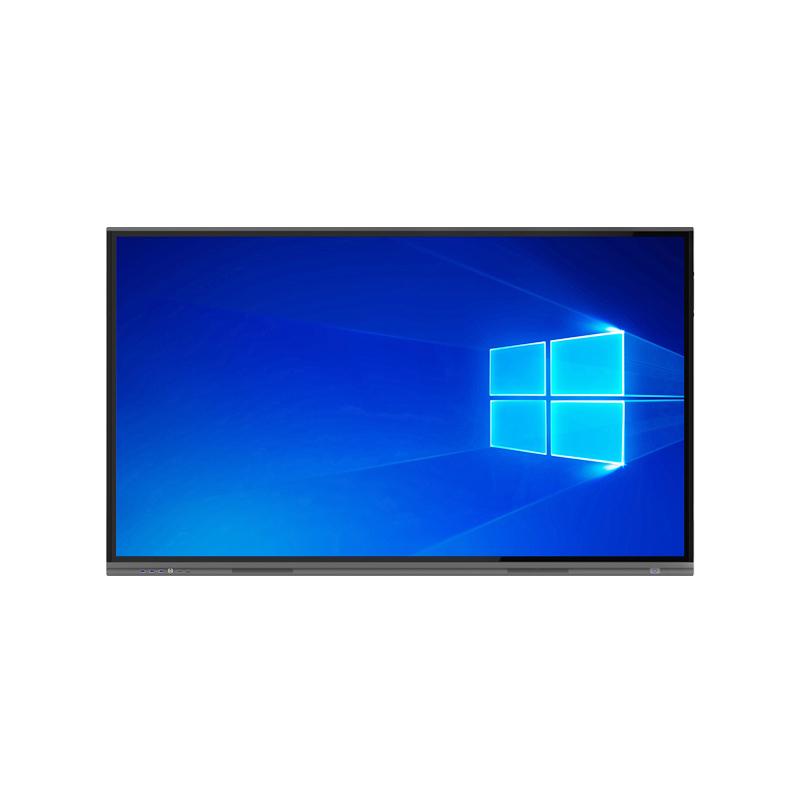

75″ Interactive Flat Panel–STFP7500
- Product Details
- Specifications
- Related Products
- Download
Basic Product Information
| Product Series: | STFP Interactive Whiteboard | Display Type: | LCD |
| Model No. : | STFP7500 | Brand Name: | Seetouch |
| Size: | 75inch | Resolution: | 3840*2160 |
| Touch Screen: | Infrared Touch | Touch Points: | 20 points |
| OS: | Android 14.0 | Application: | Education/Classroom |
| Frame Material: | Aluminum & Metal | Color: | Grey/Black/Silver |
| Input Voltage: | 100-240V | Place of Origin: | Guangdong, China |
| Certificate: | ISO/CE/FCC/ROHS | Warranty: | Three Year |
Product Design Description
--The whole machine uses aluminum alloy frame, surface sandblasting and anodic coxidation treatment, iron shell back cover and active heat dissipation.
-- It supports 20 touch pooints, better smoothness and faster writing speed.
-- Front expansion port: USB 3.0*3, HDMI*1, Touch*1, Type-C*1
-- 15w front speaker prevent the sound effect from deteriorating due to the built-in environment
-- The international general standard is convenient for upgrading and maintenance, there is no visible external connection line of the computer module
--The latest android 14.0 system comes with the function of electronic whiteboard, annotation, screen mirror etc.

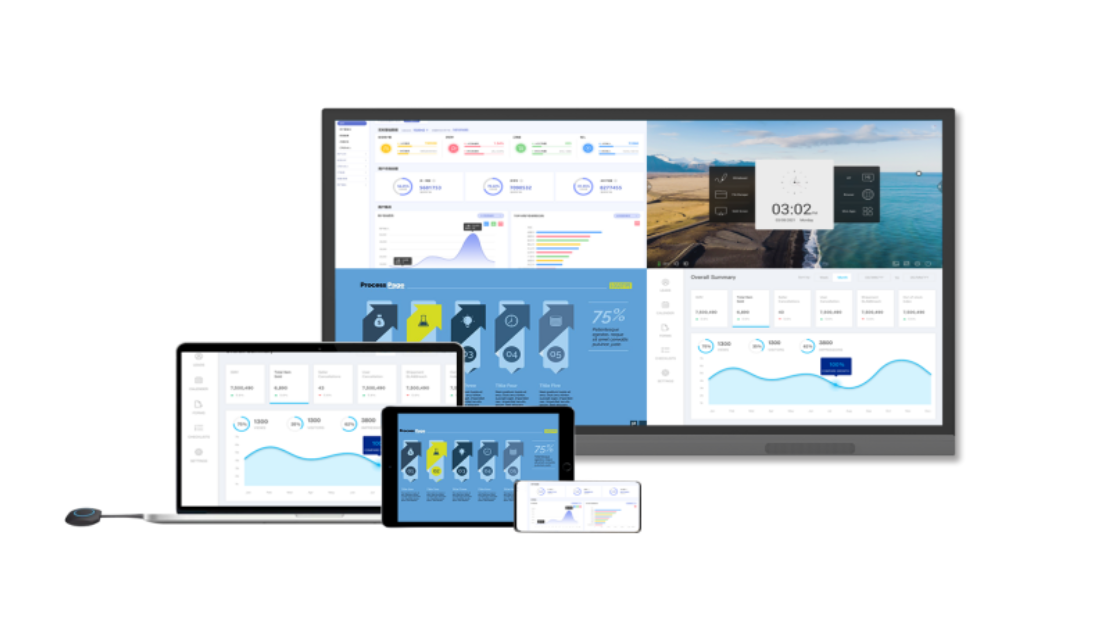

Multi-screen Wireless Mirroring
Connect to your wireless network and mirror your devices screen effortlessly. Mirroring includes touch function allowing you to control your devices all the way from the infrared touch flat panel. Transfer files from your mobile phones using the E-SHARE App or use it as a remote control to control the main screen while you were walking around the room.
Video Conference
Bring your ideas into focus with engaging visuals and video conferences that illustrate ideas and encourage teamwork and innovation. The IWB empowers your teams to collaborate, share, edit and annotate in real-time, wherever they are working. It enhances meetings with distributed teams, remote workers, and employees on-the-go.
More Features
--Super-narrow frame boarder with android & windows USB port in the front
-- Support 2.4G/5G WIFI double band and double network card, wireless internet and WIFI spot can be used at the same time
-- On the status of screen standby, once gets a HDMI signal the screen will be lighted automatically
-- The HDMI port support 4K 60Hz signal that makes display more clear
-- One-key-On/off, including the power of android & OPS, energy saving & standby
-- Customized Start screen LOGO, theme, and background, local media player supports automatic classification to meet different needs
-- Ooly one RJ45 cable provides internet for both android and windows
| Model Number | STFP7500 | |
| Screen Size | 75inch | |
| Backlight | LED backlight | |
| Panel Brand | BOE/LG/AUO | |
| Resolution | 3840*2160 | |
| Brightness | 350nits | |
| Viewing Angle | 178°H/178°V | |
| Response Time | 6ms | |
| OS | Android 14.0 | |
| CPU | 8 core ARM-cortex A55, 1.2G~1.5G Hz | |
| GPU | Mali-G31 MP2 | |
| Memory | 4/8G | |
| Storage | 32/64/128G | |
| Interface | Front Interface | USB 3.0*3, HDMI*1, Touch*1, Type-C*1 |
| Back Interface(Simple version ) | Input: LAN IN*1, HDMI*2, USB 2.0*1, USB3.0*1, VGA IN*1. VGA Audio IN*1, TF card slot*1, RS232*1 Output: Line out*1, coaxial*1, touch*1 | |
| Back Interface (Full version) | Input: LAN IN*1, HDMI*2, DP*1, USB2.0*1, USB 3.0*1, VGA IN*1, MIC*1, PC Audio IN*1, TF Card slot*1, RS232*1 Output: line*1, LAN*1, HDMI*1, coaxial *1, Touch*1 | |
| Camera | 1300M | |
| Microphone | 8-array | |
| NFC | Optional | |
| Speaker | 2*15W | |
| Touch Screen | Touch Type | 20 points infrare touch frame |
| Accuracy | 90% center part ±1mm, 10% edge±3mm | |
| Configuration | Intel Core I7/I5/I3, 4G/8G/16G +128G/256G/512G SSD | |
| Network | 2.4G/5G WIFI, 1000M LAN | |
| Interface | VGA*1, HDMI out*1, LAN*1, USB*4, Audio out*1, Min IN*1,COM*1 | |
| Environment | Temperature | Working tem: 0-40℃; storage tem: -10~60℃ |
| Humidity | Working hum:20-80%; storage hum: 10~60% | |
| Power Supply | AC 100-240V(50/60HZ) | |
| Color | Deep grey | |
| Package | Corrugated carton+stretch film+optional wooden case | |

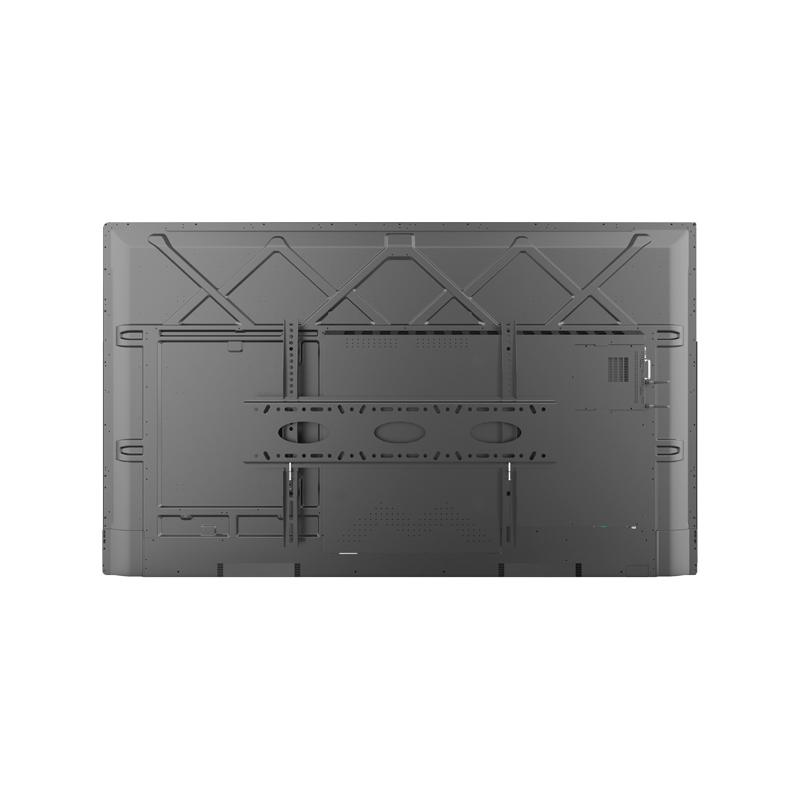

| VESA(mm) | 500*400（65”），600*400（75”），800*400（86”）,1000*400(98”) | |
| Accessory | Standard | Magnetic pen*2, remote control*1, manual *1, certificates*1, power cable *1, HDMI cable*1,Touch cable*1, wall mount bracket*1 |
| Optional | Screen share, smart pen | |
