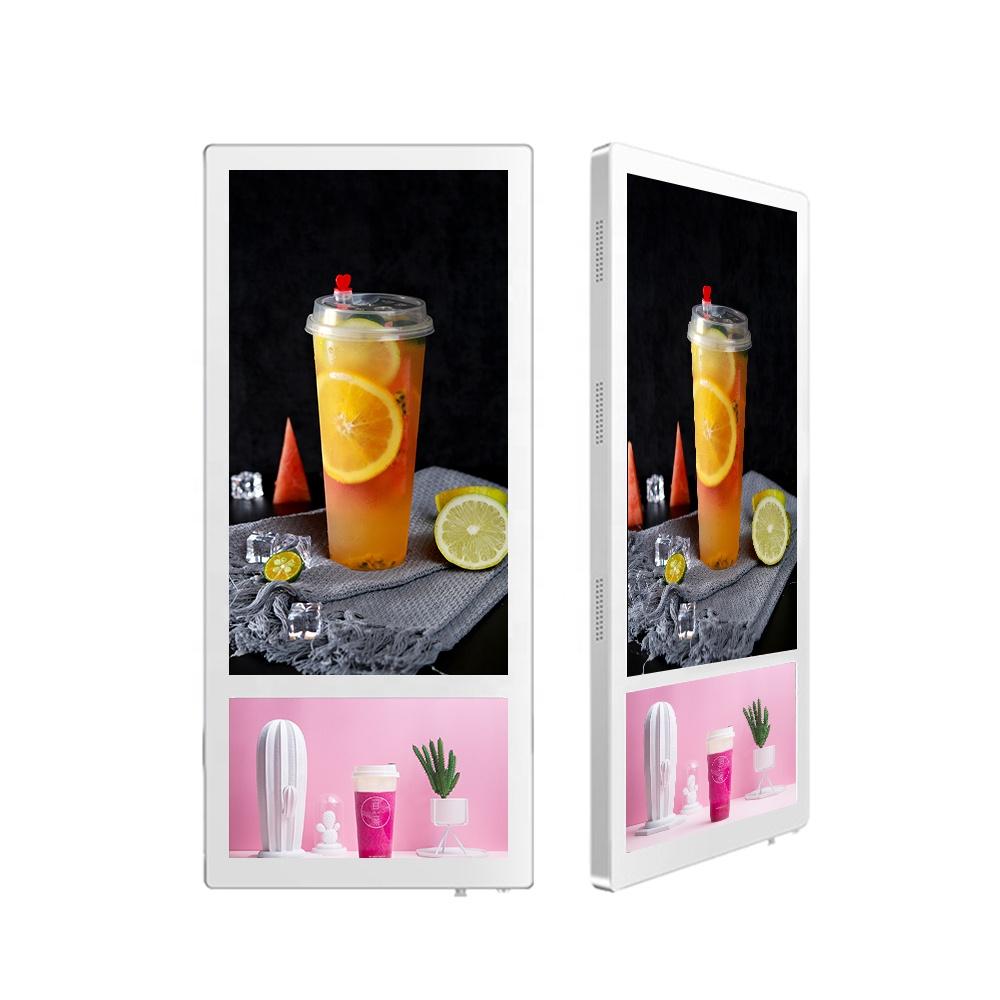

Dual Screen Elevator Digital Signage
- Product Details
- Specifications
- Related Products
- Download
Basic Product Information
| Product Series: | DS-E Digital Signage | Display Type: | LCD |
| Model No. : | DS-F19 | Brand Name: | LDS |
| Size: | 18.5+10.1inch | Resolution: | 1920*1080 |
| OS: | Android 7.1 | Application: | Advertising |
| Frame Material: | Aluminum & Metal | Color: | Black/Silver |
| Input Voltage: | 100-240V | Place of Origin: | Guangdong, China |
| Certificate: | ISO/CE/FCC/ROHS | Warranty: | One Year |
About Digital Signage

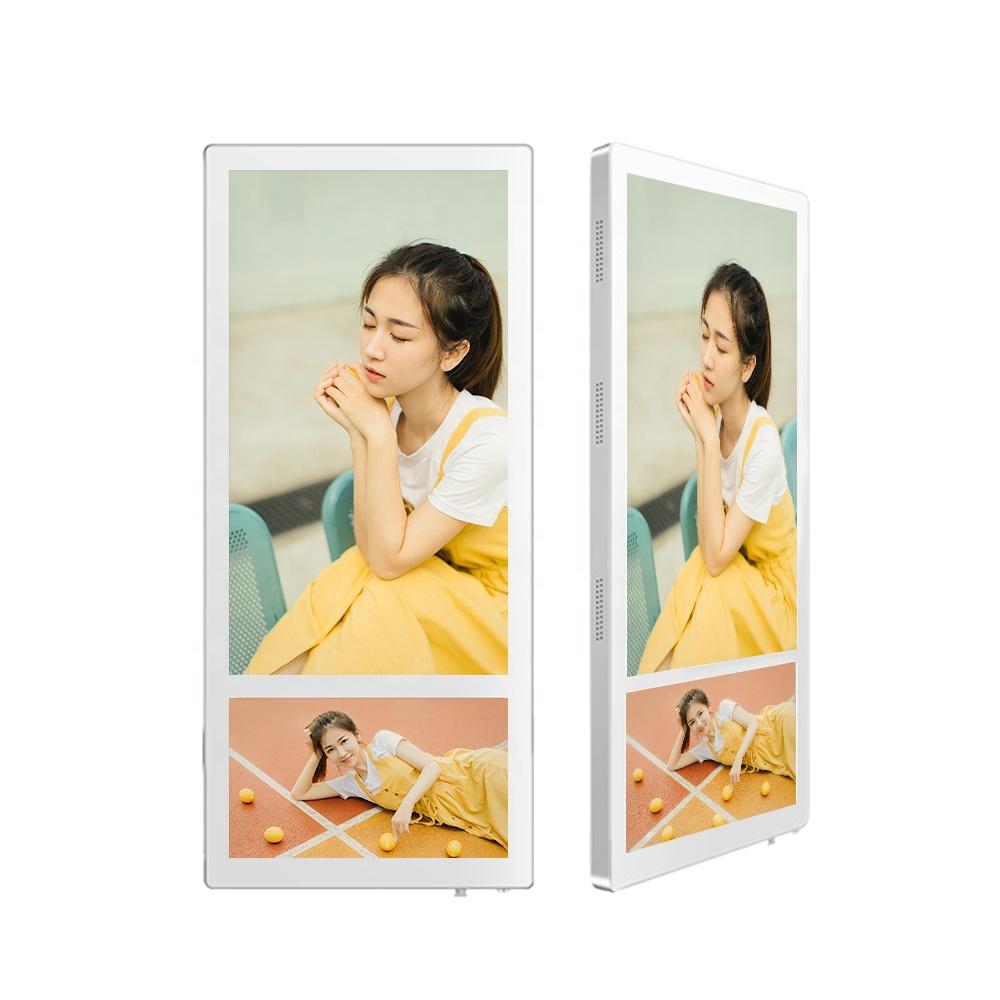

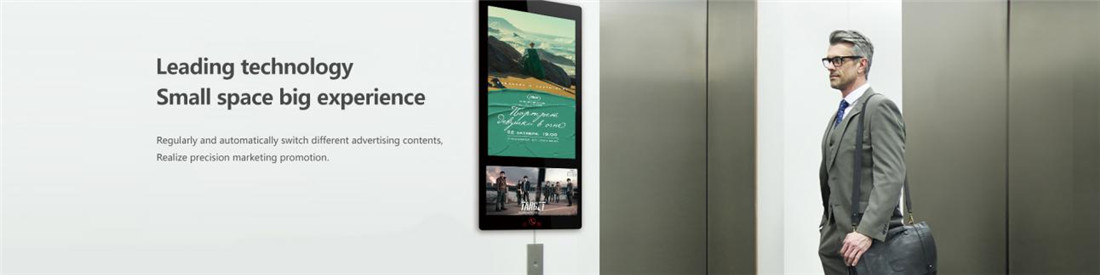

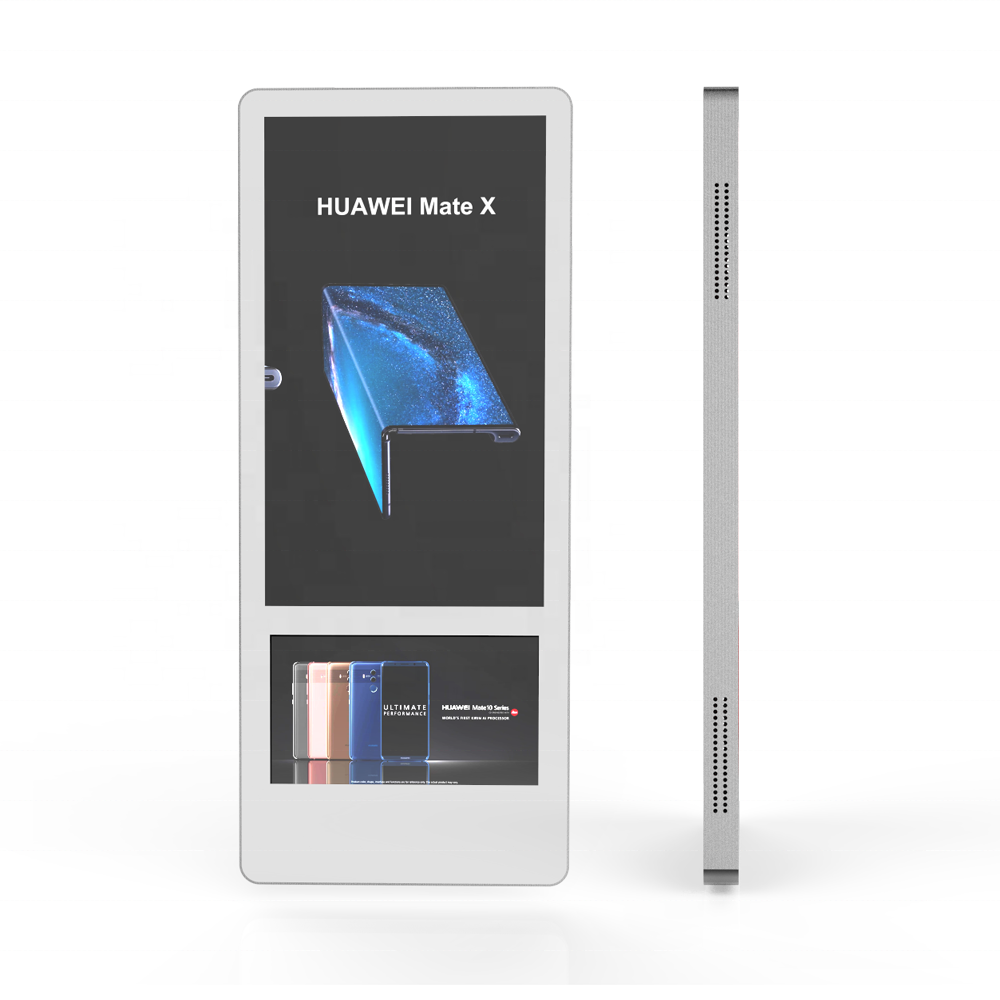

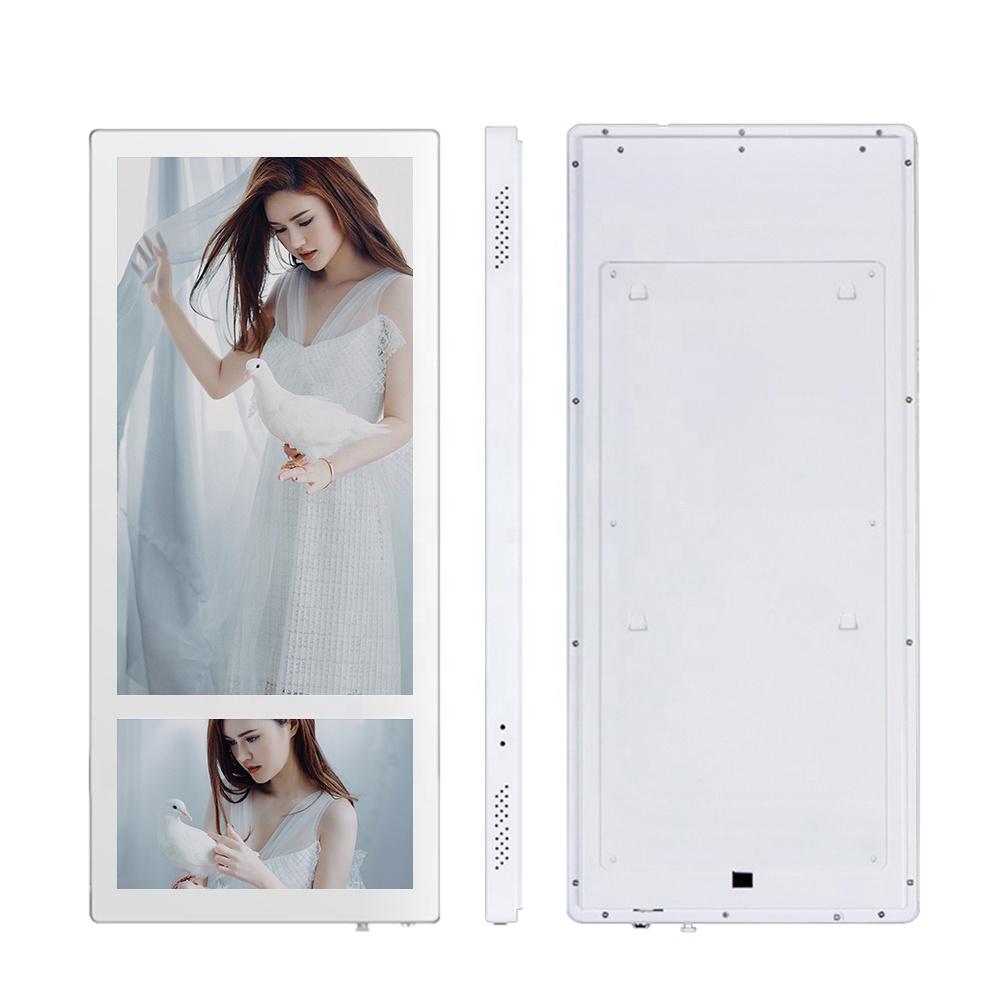

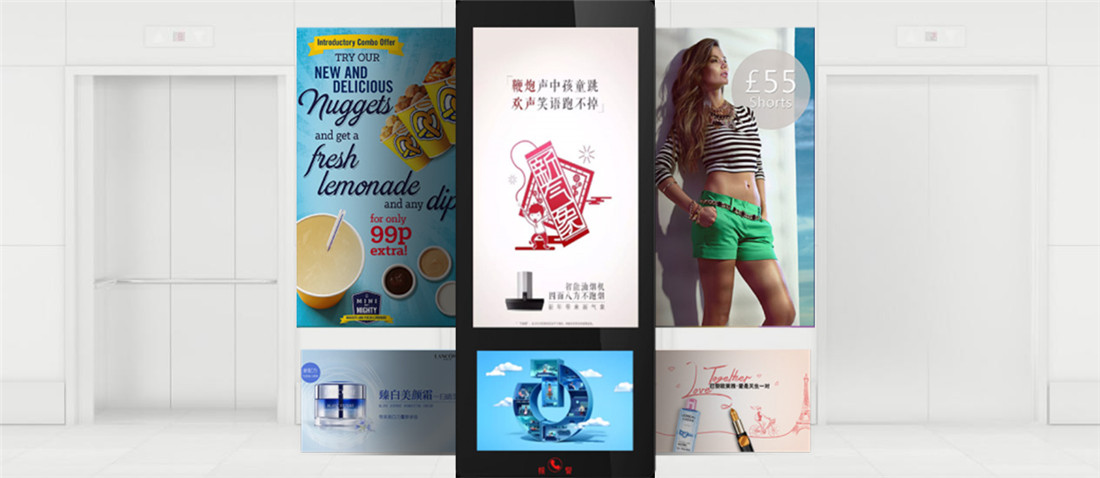

DS-F series Digital Signage is a model used in elevator, specially with dual screen to make big benefits. With only 28mm thickness and light weight, it can mounted on the elevator by the glue easily.

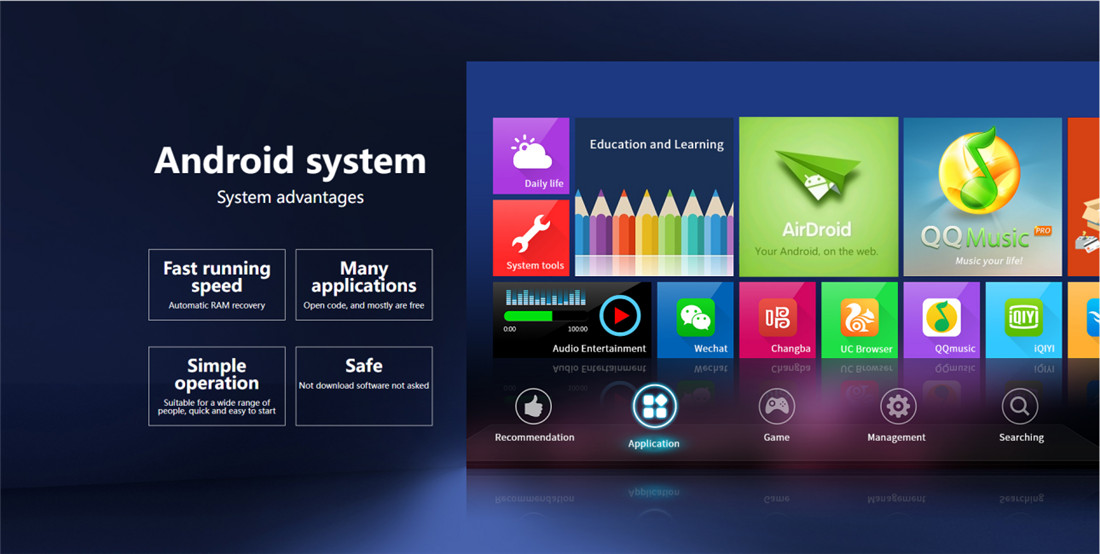

Suggest Android 7.1 System, with fast running & Simple operation
Main Features including advanced CMS software, simple operation, integrated design
●178° Ultra Wide Viewing Angle will present a true and perfect picture quality.
●Advanced CMS software with simple operation to control screen easily
●Based on reliable android system with deep optimization

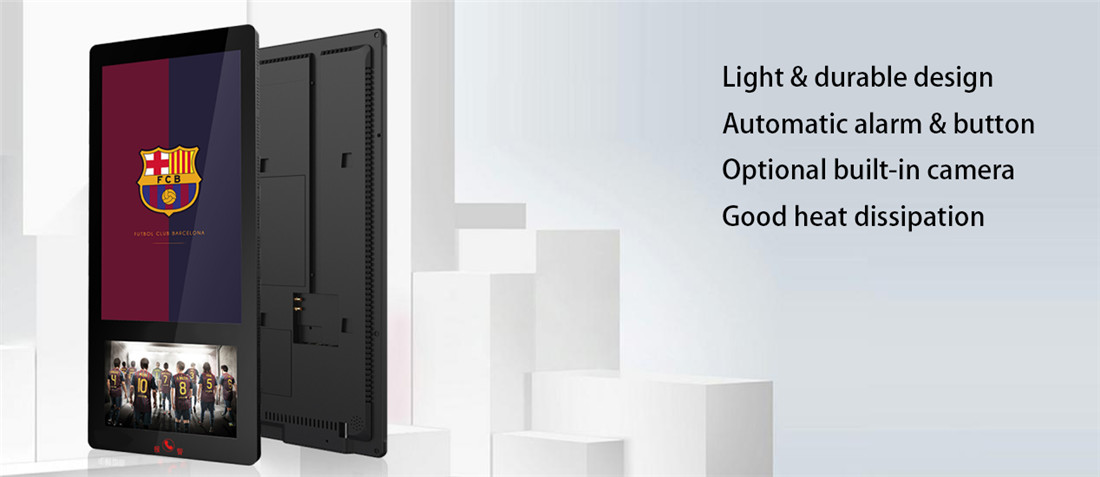

The display frame is with very high strength and alarm button for emergency help
Built-in Multiple template & support 7/24/365 Continuous Working

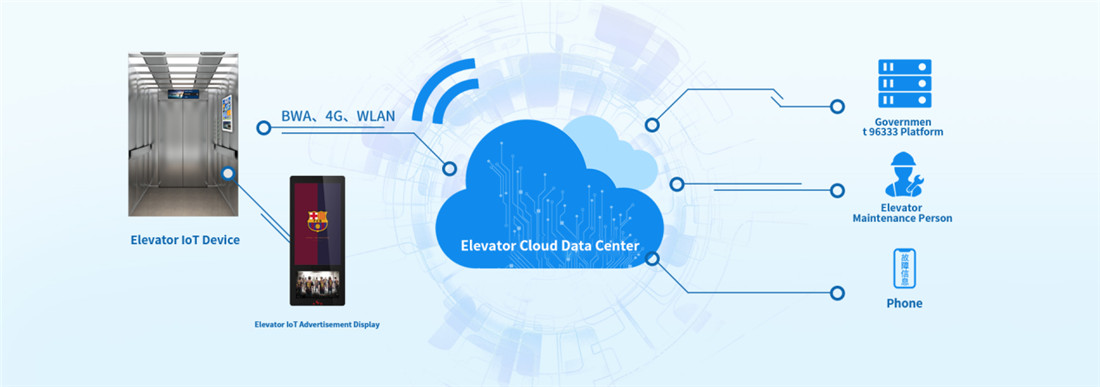

How does the whole system work
More Features
Low radiation and protection against blue light, better protection of your visual health.
Industrial grade LCD panel support 7/24 hours running
Network: LAN & WIFI, optional 3G or 4G
Rich interface: 2*USB 2.0, 1*RJ45, 1*TF Slot, 1* HDMI input
Built-in stereo speaker that makes the sound more clear and the AV experience better
Support multi-period program preset, and makes the screen to play different content as we designed in different time.
Customized Start screen LOGO, theme, and background, local media player supports automatic classification to meet different needs
Application
Education
Classroom, multimedia room
Conference
Meeting room, training room etc
Our Market Distribution
| Screen Size | 18.5+10.1inch | |
| Backlight | LED backlight | |
| Panel Brand | BOE/LG/AUO | |
| Resolution | 1366*768（18.5”) /1280*800 (10.1”) | |
| Viewing Angle | 178°H/178°V | |
| Response Time | 6ms | |
| OS | Android 7.1 | |
| CPU | RK3288 Cortex-A17 Quad Core 1.8G Hz | |
| Memory | 2G | |
| Storage | 8G/16G/32G | |
| Interface | Back Interface | USB*2, TF*1, HDMI Out*1, DC In*1 |
| Other Function | Camera | Optional |
| Alarm Button | Optional | |
| Speaker | 2*3W | |
| Environment | Temperature | Working tem: 0-40℃; storage tem: -10~60℃ |
| Humidity | Working hum:20-80%; storage hum: 10~60% | |
| Power Supply | AC 100-240V(50/60HZ) | |
| Structure | Color | Black/White/Silver |
| Package | Corrugated carton+stretch film+optional wooden case | |
| Gross Weight | 6KG | |
| Dimension | 640*277*28mm | |
| Accessory | Standard | WIFI antenna*1,remote control*1, manual *1, certificates*1, power cable *1, power adaptor, wall mount bracket*1 |
